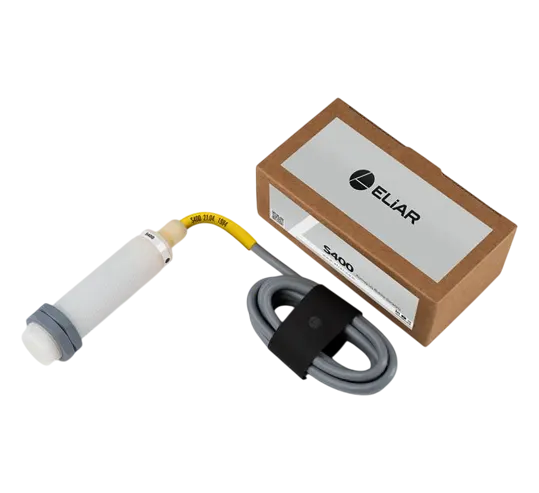

S 4XX Series | Seam Detector
New generation sensor with “twin” inductive technology.
Double processors keep track of seam magnet for guaranteed detection.
Single piece compact design eliminates extra space needed in control panel.
Sensitivity adjustment (Hi-Lo).
Guaranteed solution for seam detection for fabric unloading, sampling and cycle control.
Technical Specification For S 4XX Series | Seam Detector
Parameter | Specification |
|---|---|
Sensing Distance | Normal: 0–25 +/- 5 cm High: 0–35 +/- 5 cm |
Sensing Speed | 0.1–20 m/s |
Sensing Magnet | AlNiCo and Samarium Cobalt (Min. 0.5 Oe) |
Excitation Voltage | 24 V DC (18–30) |
Load Driving | 100 mA (24 V AC/DC) |
Operating Temperature | 0–95 °C |
Output Protection | Short Circuit Protected |
Min. Output Pulse Length | 1 sec |
Min. Sensing Period | 3 sec |
Signal | Seam Detection: Flashing Red LED High Sensitivity: Red LED Normal Sensitivity: Green LED |
Power Consumption | 1 W |
Weight | 170 gr |
Cable Length | 2 m |
Environmental Rating | IP67 |
