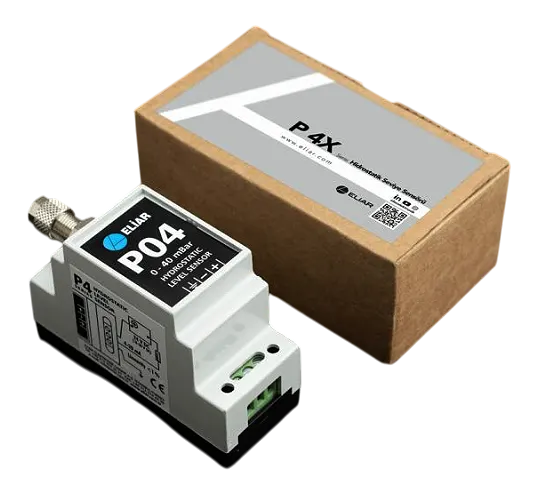

P 4X Series | Hydrostatic Level Sensor
P4x works by measuring the water pressure which is proportional to the water level in a tank.
The output is a standard two-wire, 4-20 mA current loop.
P4x needs an air isolated mounting method. It is mounted to the DIN-rail in the panel. The position of the sensor should be above the highest water level.
Technical Specification P 4X Series | Hydrostatic Level Sensor
| Parameter | Specification |
|---|---|
Input |
P40 0-100 mBar |
P42 0–200 mBar |
|
P43 0–300 mBar |
|
P44 0–400 mBar |
|
P45 0–500 mBar |
|
Media Isolation |
Air |
Output |
4–20 mA |
Excitation Voltage |
24 V DC (18–30 V DC) |
Load Driving (max) |
500 Ohm (24 V DC) |
Operating Temperature |
0 – 60 °C |
Over Pressure |
750 mBar |
Linearity |
< 1% |
Mechanical Connection |
Rail Type |
Weight |
80 gr |
Cable Length |
2 m |
Environmental Rating |
IP40 |
Tubing Diameter |
6 mm |
