T7RIO Series Industrial Control Unit (PLC)

Developed for those seeking reliability, speed, and flexibility in industrial automation, the T7 RIO PLC series delivers maximum performance in the field with its efficient control architecture. Its compact design, advanced communication protocols, and remote I/O management set it apart on production lines.

T7RIO

Rack Type, Automation Control System

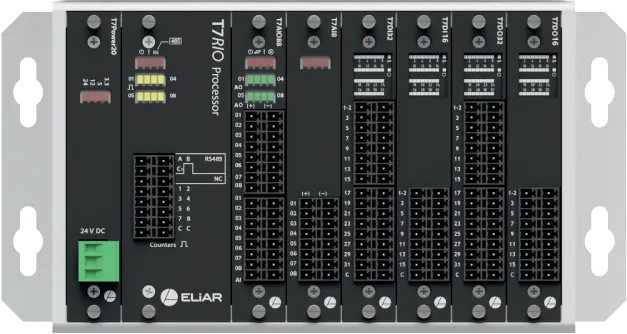

T7RIO-6

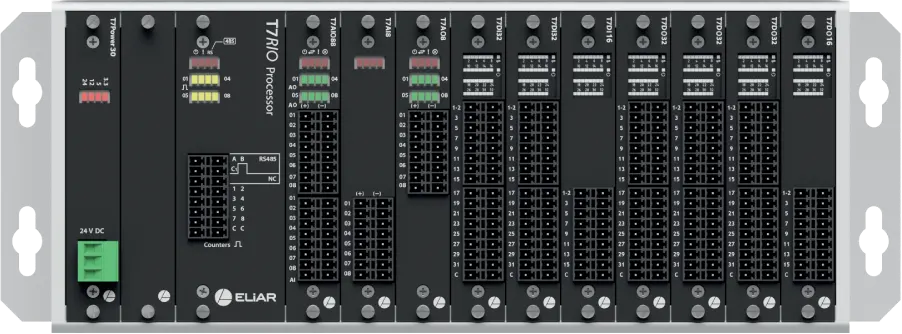

T7RIO-10

Input Output Configurations
I/O Unit
Digital Input
Digital Output
Analog Input
Analog Output
Counter
T7RIO-6
64
64
16
16
8
T7RIO-10
96
128
24
24
8
T7PRIO CPU
  • RS-485(isolated) 8xSayıcı (1 kHz)

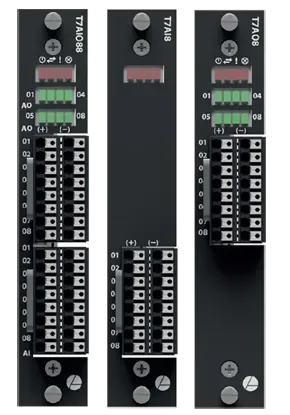

ANALOG INPUT / OUTPUT
T7AIO88
  • 8xAI (0/4-20 mA, 0-10 V, Pt100 (first 4 channel))
  • 8xAO (0/4-20 mA, 0-10 V)
T7AI8
  • (8xAI) (0/4-20 mA, 0-10 V, Pt100(first 4 channel))
T7AO8
  • (8xAO) (0/4-20 mA, 0-10 V)

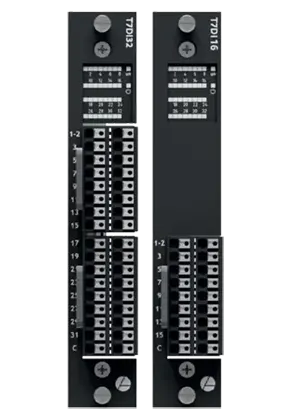

DIGITAL INPUT
T7DI32
  • 32xDI (24VDC)
T7DI16
  • 16xDI (24VDC)
DIGITAL INPUT
T7DO32
  • 32xDO (24V, 1A max.)
T7DO16
  • 16xDO (24V, 1A max.)
Technicial Specifications
CPU
Intel® Atom™ based
Screen
10.4” TFT, 800×600 dpi, 64 K Color Touchscreen
Keypad
41 button, Industrial
Working Voltage
24 V DC (18-36 V)
Power Consumption
25 W OpTerm, 30 W T7PAC
Working Temperature
0–50°C
Humidity
% 10–85 (non-condensed)
Isolation
2000 V (digital), 500 V (analog)
Operating System
LINUX
Power Outage Protection
Li-ion battery,Automatic switch-off
Technicial Specifications
I/O Unit
T7PAC Series
Connection
USB 2.0 & 3.0, 10/100 Mb Ethernet
Memory
RAM: 2 GB
Flash Memory: 32 GB
Protection Rating
IP 64 (front), IP 21 (back)
EMC Compatibility
EN 61000 – 4 – 2
EN 61000 – 4 – 4
EN 61000 – 4 – 6
EN 61000 – 4 – 11
Dimensions
274×349 (front), 170×242 (back), 100 (depth)
I/O Configuration
Max. 10 socket
