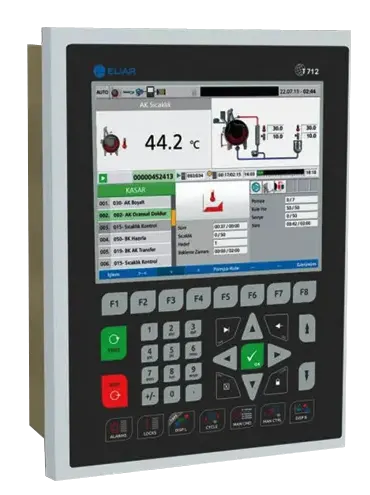

T712 | Fully Automatic Textile Batch Controller
Batch Controller
For discontinuous fabric, yarn dyeing and garment dyeing, washing machines.
The T712 flexible software infrastructure developed by ELİAR is compatible with all discontinuous machines regardless of brand and model.Thanks to the Integrated Web Server, it provides ease of use and management for both the operator and technical maintenance team with features such as remote control, machine maintenance management, wireless monitoring.
Dyeing Drying And Rinsing Process Functions
- Fabric dyeing, drying, rinsing; package dyeing, drying, rinsing functions
- More than 80 built-in process functions for textile
- Easy adding of new functions based on machine and process properties
Teleskop Central Supervisory And Control Software
- 100 Mbit Ethernet connection
- Starting ready to run processes which are uploaded from Teleskop
- Fully automatic handling online chemical and dyestuff requests to automatic dispensers
Improvement and Acceleration Features
- Flexible and optimized programmes with formulabased target value calculations
- Automatic calculation of command parameters with “Batch start parameters”
- Ability to execute 15 parallel commands in one step
- Ability to define machine and timer constants
- Ability to work acoupled up to 6 machines
- Automatic fabric speed calculation and tours control with tour time calculation
- Starting pre-planned and ready-made processes loaded into the controller
User Management
- Multi-user operation with authorization status
- Multi-level password security
Storage, Backup and Maintenance
- Archiving of last 3 months of alarms, temperature, level and cycle time values
- Water consumption reports
- Electric consumption reports (using EPAC)
- Theoretical steam consumption
- USB flash disk usage and backup feature of configuration and processes
- Internet access and software version upgrade
Pc Software Utilities
- Configuration Management Utility
- Configuration Backup Utility
- Excel Raporu
- Machine diagram configuration software
- Version upgrade tool
